QE Power-T
Modbus Three Phase Power Analyzer
- Features
- Measures Current and Voltage
- Measures Active Reactive and Apparent Power
- Measures Frequency
- Measures Power Factor,total and per phase
- Measures Bi-directional Energy kWh
- Measures Active Reactive Energy kVArh
- Measures Crest Factor
QE Power-T-PLUS
Modbus Three Phase Power Analyzer
- Above features plus
- THD
- Max Demand
- Min/Max/AvPower and Power Factor
- Phase sequence controller
QE Power-T-PRO
Modbus Three Phase Power Analyzer
- Above features plus
- POWER QUALITY COMPLIANT
- Harmonics and Interharmonics up to 63rd

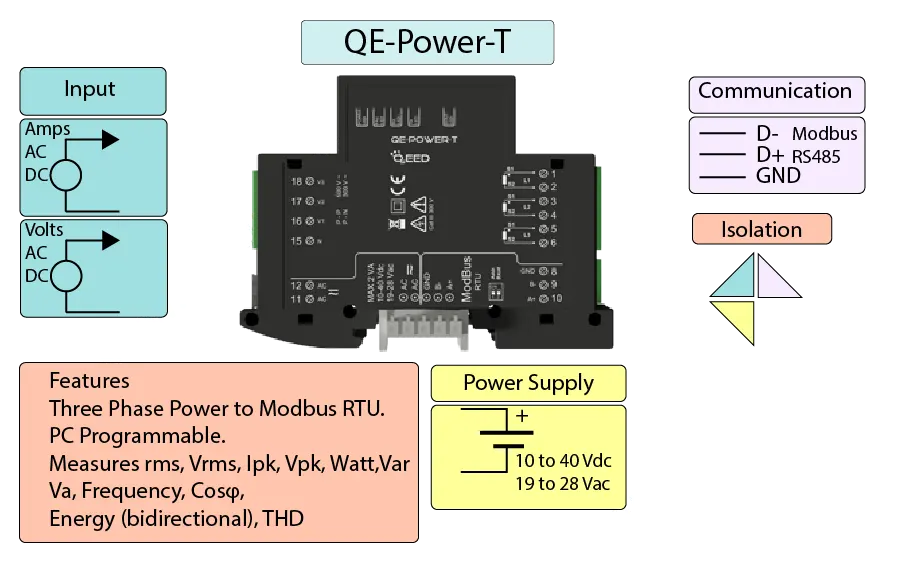

Modbus Three Phase Power Analyzer
The QE Power T is a Modbus Three Phase Power Analyzer that measures the following.
- Voltage rms, Instantaneous Peak, Average and Max.
- Current rms, Instantaneous Peak, Average and Max.
- Power Active Reactive VAR, Apparent VA.
- Frequency, Min and Max.
- Power Factor total and per phase Inductive and Capacitive.
- Energy kWh total and per phase.
- Bi-directional Energy kWh positive and negative total and per phase.
- Active and Reactive Energy kVArh Inductive and Capacitive total and per phase.
- Crest Factor total and per phase.
The unit is mounted on a DIN rail and is configurable with free software available from our website. Isolation is provided up to 4000 Volts between the measuring points and the Modbus output and 1500 Volts between the Modbus output and the power supply.
